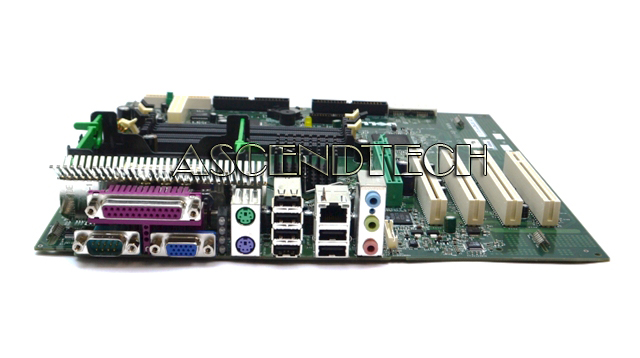

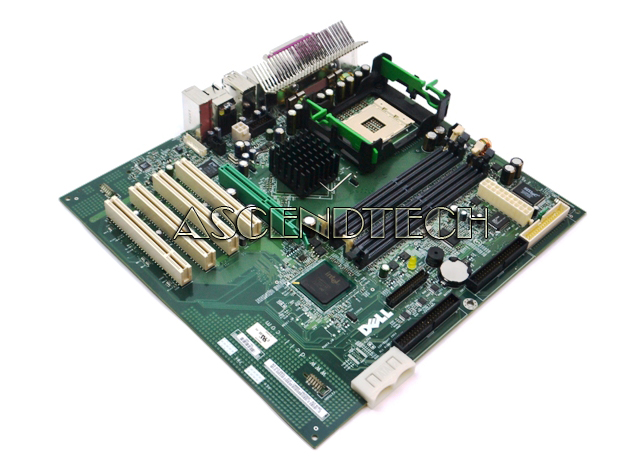

Dell Optiplex GX270 System Motherboard
Enlarge
Price:
$58.99Free Shipping!
Qty:
Item Code:
MB4DELGX2704PCI
Manufacturer:
Part Number:
K5786 U1325 Y1057 YF927
Compatible Part Numbers:
U1325 0U1325 CN-0U1325 Y1057 0Y1057 CN-0Y1057 YF927 0YF927 CN-0YF927 H1487 0H1487 CN-0H1487 H1290 0H1290 CN-0H1290 FG015 0FG015 CN-0FG015 DG284 0DG284 CN-0DG284 FG022 0FG022 CN-0FG022 FG009 0FG009 CN-0FG009 K2863 0K2863 CN-0K2863 XF824 0XF824 CN-0XF824 CG611 0CG611 CN-0CG611 X9294 0X9294 CN-0X9294 NG652 0NG652 CN-0NG652 PG605 0PG605 CN-0PG605
Compatible Models:
Dell Optiplex GX270 Series
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Item Description

Dell Optiplex GX270 Intel 865PE mPGA478 Socket DDR SDRAM 64 MB Desktop System Motherboard K5786 0K5786 CN-0K5786.

Chipset: Intel 865PE
Socket: Socket mPGA478 Pentium 4 and Celeron Processors
Max Supported Memory: Up to 4 GB
Number of Memory Slots: 4
Memory Type: DDR SDRAM
Speed: 400/333 MHz
Error Correction (ECC): No
Video Chipset/GPU Model: Integrated Intel Extreme Graphics 2
Graphics Memory: 64 MB
Input/Output Ports: 6x USB 2.0; 1x Ethernet (RJ-45); 1x 9-pin serial DB-9 Male (16550 compatible); 1x parallel DB-25 Female (25-hole, bi-directional); 1x VGA Female; 1x PS/2 mouse; 1x PS/2 keyboard; 1x stereo line-in (minijack); 1x microphone-in (minijack-front); 1x speakers/line-out (minijack); 1x headphone (minijack-front)
Expansion Slots: 4x PCI bus connector; 1x AGP slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows XP Professional, Microsoft Windows XP Home, Microsoft Windows 2000 Professional
